產品簡介
- Supports PCI Express x1
- 8 channels, 14-bit AO
- Voltage output range: ±10 V
- Current output range: 0 ~ 20 mA (sink)
- Two timer/counter interrupt sources
- Software calibration
- 16 channels DI
- 16 channels DO
- Card ID Function(SMD Switch)
- Pull-high/Pull-low Jumpers for DI Ports
For the PEX-DA series, their voltage output range is from -10 V to +10 V, and their current output range is from 0 to 20 mA. In addition, These cards also feature the following advantages by ICP DAS's innovation: Accurate and easy-to-use calibration. ICP DAS provides the software calibration instead of the manual calibration so that no jumpers and trim-pots are required anymore.
The calibration information can be saved in EEPROM for long-term use. Individual channel configuration.In other words, every channel can be individually configured as voltage output or current output! ICP DAS provides the Card ID function. Users can set card ID for each card and then recognize them one by one when more than two boards are used in a computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

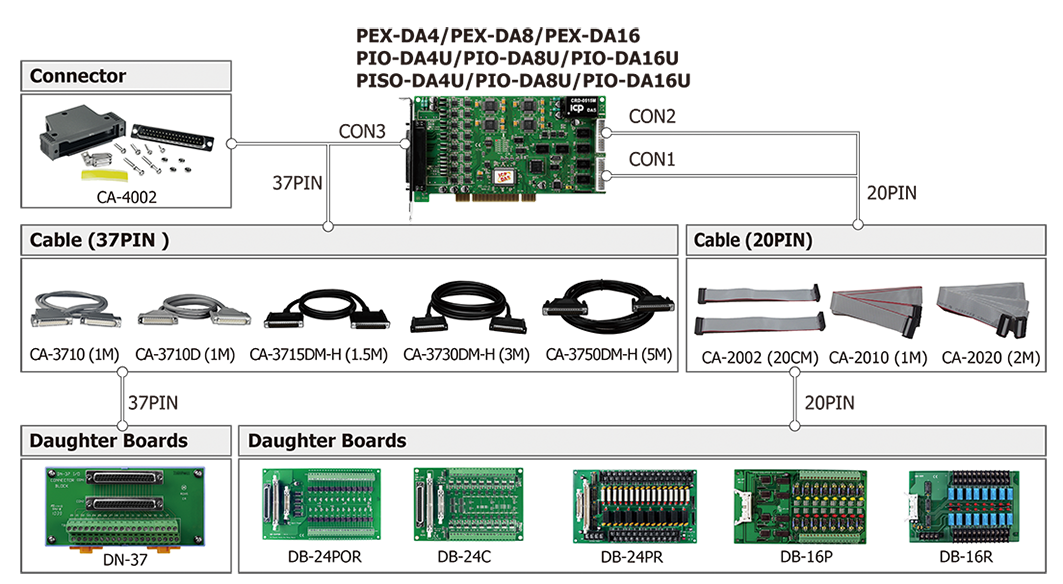

配件
(16)_PIO-DA4U(8U)(16U)_PISO-DA4U(8U)(16U)-accessories.png)
應用
High speed data acquisition system.
Process monitor and control.
Vibration analysis.
Digital pattern generator from digital I/O port.
規格
| 硬件 |
| 板卡 ID |
Yes (4-bit) |
| 接頭 |
Female DB37 x 1
20-pin Box header x 2 |
| 模擬量輸出 |
| 通道數 |
8 |
| 范圍 |
Voltage: ± 10 V
Current: 0 ~ 20 mA |
| 解析度 |
14-bit |
| 精度 |
0.04% of FSR ± 2 LSB @ 25 °C, ± 10 V |
| 反應時間 |
166 kHz (Typical) |
| 電壓輸出推力 |
±5 mA |
| 斜率 |
0.71 V/μs |
| 工作模式 |
Static Update |
| 數字量輸入 |
| 通道數 |
16 |
| 類型 |
5 V/TTL |
| ON 電壓準位 |
2.0 V Min. |
| OFF 電壓準位 |
0.8 V Max. |
| 反應速度 |
500 kHz (Typical) |
| 觸發模式 |
Static Update |
| 數字量輸出 |
| 通道數 |
16 |
| 類型 |
5 V/CMOS |
| 工作模式 |
Static Update |
| 負載電壓 |
Logic 0: 0.1 V Max.
Logic 1: 4.4 V Min. |
| 負載電流 |
Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V |
| 反應速度 |
500 kHz (Typical) |
| 計時/計數/頻率 |
| 通道數 |
3 |
| 類型 |
5 V/TTL |
| 解析度 |
16-bit |
| 參考時鐘 |
Internal: 4 MHz |
| PC 總線 |
| 類型 |
PCI Express x 1 |
| 數據總線 |
8-bit |
| 電源 |
| 功耗 |
750 mA@ +3.3 V
400 mA@ +12 V |
| 機構 |
| 尺寸 (mm) |
116.4 x 172.6 x 22 (W x L x D) |
| 環境 |
| 工作溫度 |
0 ~ +60°C |
| 儲存溫度 |
-20 ~ +70°C |
| 濕度 |
5 ~ 85% RH, Non-condensing |
